Welding Manipulator (Column and Boom)
Stable Movement Process

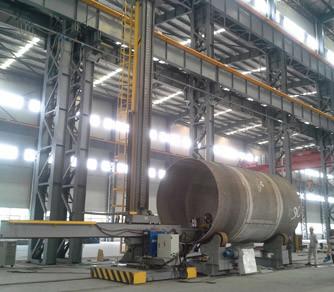

Olivet's welding manipulator could be assembled to automatic welding
system with the welding turning roll, automatic welding machine and
welding control system, etc. It's widely used in industries as
boiler, pressure vessel, chemical petroleum, metallurgical
construction and machinery for inner and outer longitudinal welding
and circumferential welding of various seams on cylindrical
members.
The welding manipulator is advanced structure design,
multi-functions and easy operation. Then increasing production
capacity and assure the quality.
The welding manipulator could be divided into light, standard
type,heavy and super-heavy according to weight-bearing, effective
vertical and horizontal stroke.
According to actual usage, the manipulator can be divided into
fixed, fixed with rotation and moveable with rotation, etc.
china
welding manipulator Features
Advanced structure
Complete function
Improving of welding quality
Big loading capacity at the top of boom
Scope of supply
A. 1 column and 1 beam assembly
B. 1 Trolley or fixed base
C. 1 Service ladder
D. 1 Electrical control system
welding
manipulator Main technical parameters
| Type | QLH (light) | LH (middle) | ZLH (heavy) | LHW (super-heavy) |
| Vertical stroke, m | 1-3 | 2-6 | 1-3 | 3-15 |
| Horizontal stroke, m | 1-3 | 2-6 | 1-3 | 4-15 |
| Beam elevating speed, mm/min | 600 | 600 | 600 | 800 |
| Beam Horizontal speed, mm/min | 100-1500 | 100-1500 | 100-1500 | 100-1500 |
| Beam Horizontal speed control | AC frequency conversion stepless inverter speed regulation (VFD) |
| Min height under boom(A), mm | 300 | 400 | 400 | 600 |
| Min distance from center line of column to the front end of the
boom (B), mm | 500 | 1000 | 1000 | 1000 |
| Column revolving | Angle(°) | ±180 | ±180 | ±180 | ±180 |
| Speed(rpm) | By manual | 0.11/By manual | 0.11/By manual | 0.11/By manual |
| Trolley moving speed, mm/min | By manual | 2000 | 2000 | 2000 |
| Trolley height (C), mm | 300 | 440 | 440 | 440 |
| Inner side distance of rail if have (D), mm | 1200 | 1500 | 2000 | 2500 |
