    SSingle Base Positioner - HBJ Series

    Ask Lasest Price
    Brand Name : OLIVET
    Model Number : HBJ
    Price : pls confirm with us
    Payment Terms : 30% TT in advance, 70% TT before the shipment
    Supply Ability : as you want
    Delivery Time : 30working days
    • Product Details
    • Company Profile

    SSingle Base Positioner - HBJ Series

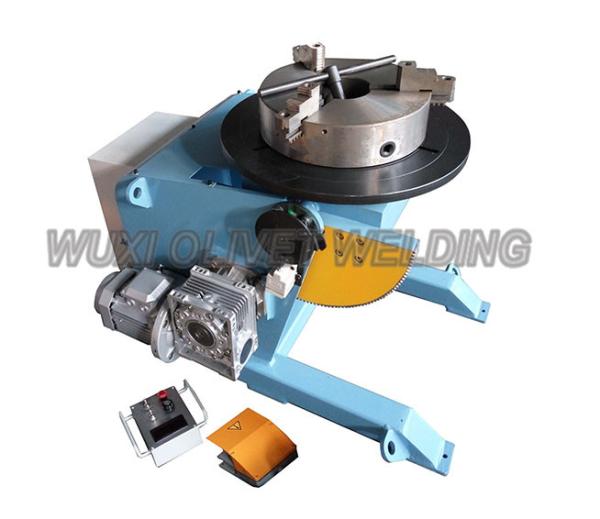

    Single Base Positioner - HBJ Series


    Olivet's range of welding positioners provides the quickest means of both rotating and tilting through 360 degrees while allowing maximum access to the workpiece.

    Single Base Positioner- HBJ Series


    Stable Rotating Process


    Olivet has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's heavy duty welding positioners are with capacities ranging for 300 to 500,000kgs.

    HBJ Series welding positioners are the best solution to the problem of rotating and tilting demanding work pieces. Angle and speed are all adjustable. They have infinitely variable height control as a result of a remote control of all functions.


    Welding Positioner Scope of Delivery

    A. 1 Power and 1 Idler turning rolls

    B. 1 Electric control system

    1 control panel

    1 remote pendant

    1 foot switch

    Main Technical Parameters


    ModelMax. loadGravity Dist.Eccentricity Dist.Rotation speedTilting rangeTable diameter
    HBJ-03300 kg200 mm150 mm0.1-1 rpm0°-90°600 mm
    HBJ-06600 kg200 mm150 mm0.1-1 rpm0°-90°1000 mm
    HBJ-121,200 kg250 mm200 mm0.075-0.75 rpm0°-90°1200 mm
    HBJ-202,000 kg300 mm200 mm0.05-0.5 rpm0°-90°1300 mm
    HBJ-303,000 kg300 mm200 mm0.05 - 0.5 rpm0°-135°1400 mm
    HBJ-505,000 kg300 mm200 mm0.05 - 0.5 rpm0°-135°1500 mm
    HBJ-10010,000 kg400mm200mm0.05 - 0.5 rpm0°-135°2000 mm
    HBJ-20020,000 kg600mm200mm0.04 - 0.4 rpm-45°-90°2500 mm

    Note

    Please note when you select your Positioner, the gravity center and eccentricity of your work-pc including chuck.

    The below two figures show HBJ12 positioner’s relationship of gravity center distance and Eccentricity distance with work-pc
